Serhii

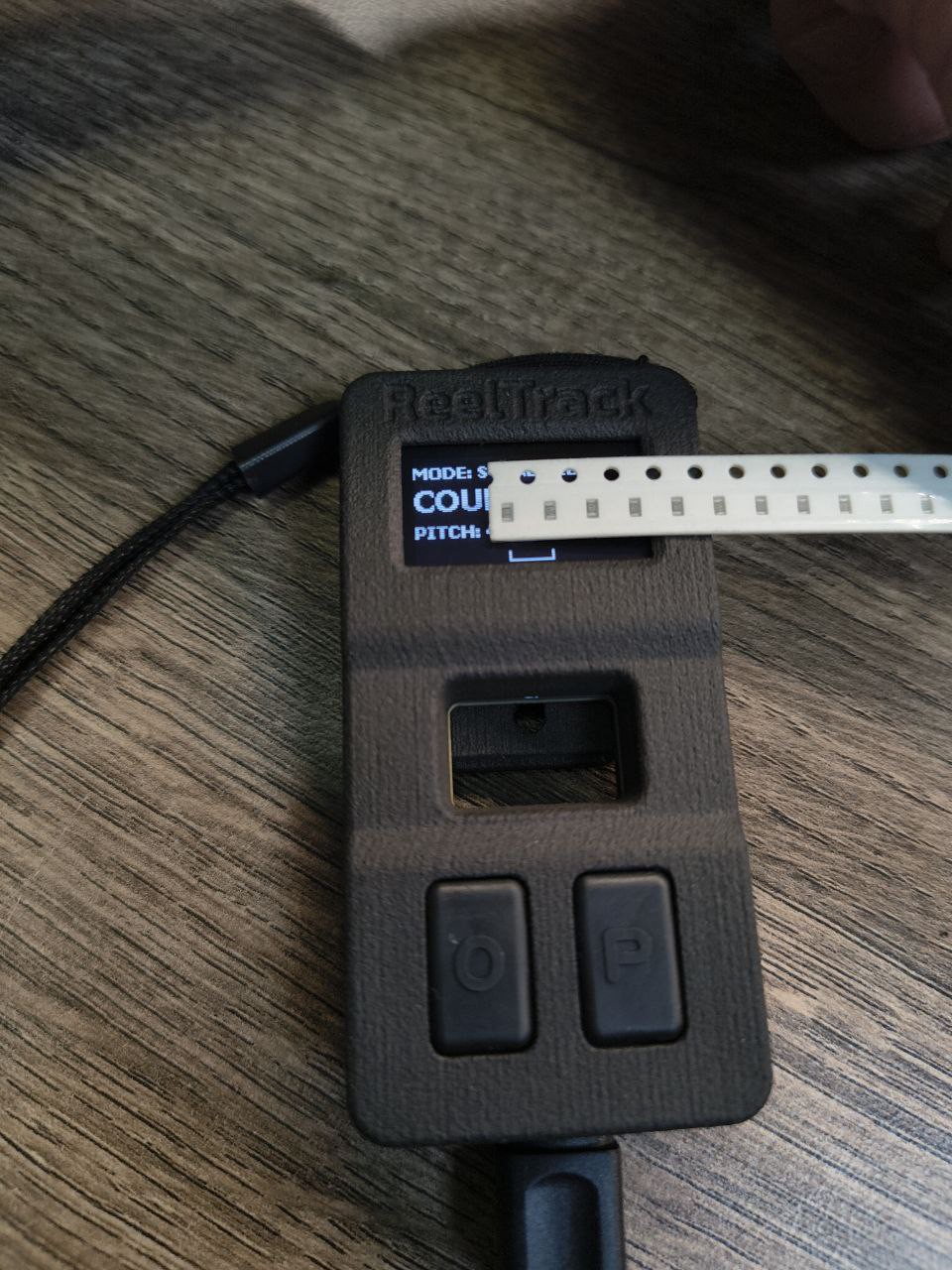

Device has a durable and pocket-sized case, making it easy to carry around the warehouse. No moving parts reduce wear and tear over time. It uses IR sensors to count parts as quickly as you can pull them through.
- Tape width 8, 12, 16 mm
- Adjustable Component Intervals 2, 4, 8, 12, 16 mm
- Supported component size 0201, 0402, 0603, 0805, 1210, etc.
- Max count speed 1 m/s
- Count 0 to 9999 pcs
- Tolerance +/- 2 pcs

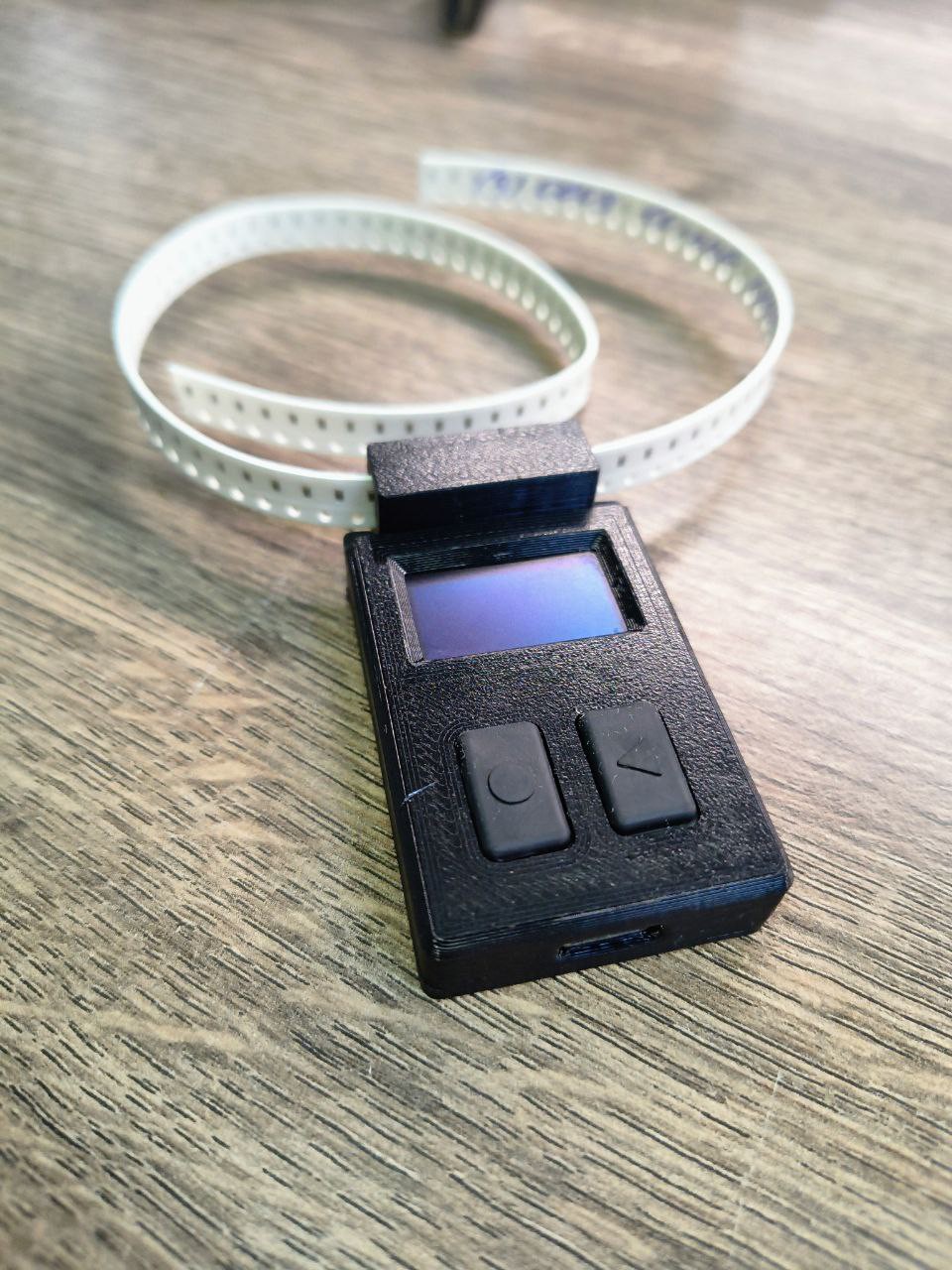

Compatible with plastic and paper carrier tapes ranging from 8 mm to 16 mm wide. When you work with automatic pick and place machines, you know that it is essential to leave empty tails for an easy feeder loading process. If you cut it out, the operator will stick special SMT cover tape extenders, which add extra costs to your assembly price.
User-friendly OLED Display helps you choose the necessary setup.
ottoragam
Vitaly
Steve Dearden
Harshil Patel
Hey - any plans to open source schematics or design files? Even in partial form it would be helpful for others trying to build on your work. Understandable if no if you're trying to sell these at some point, but would love to see it at a bit lower of a price point than the [BeanCounter](https://www.crowdsupply.com/great-big-factory/beancounter)
